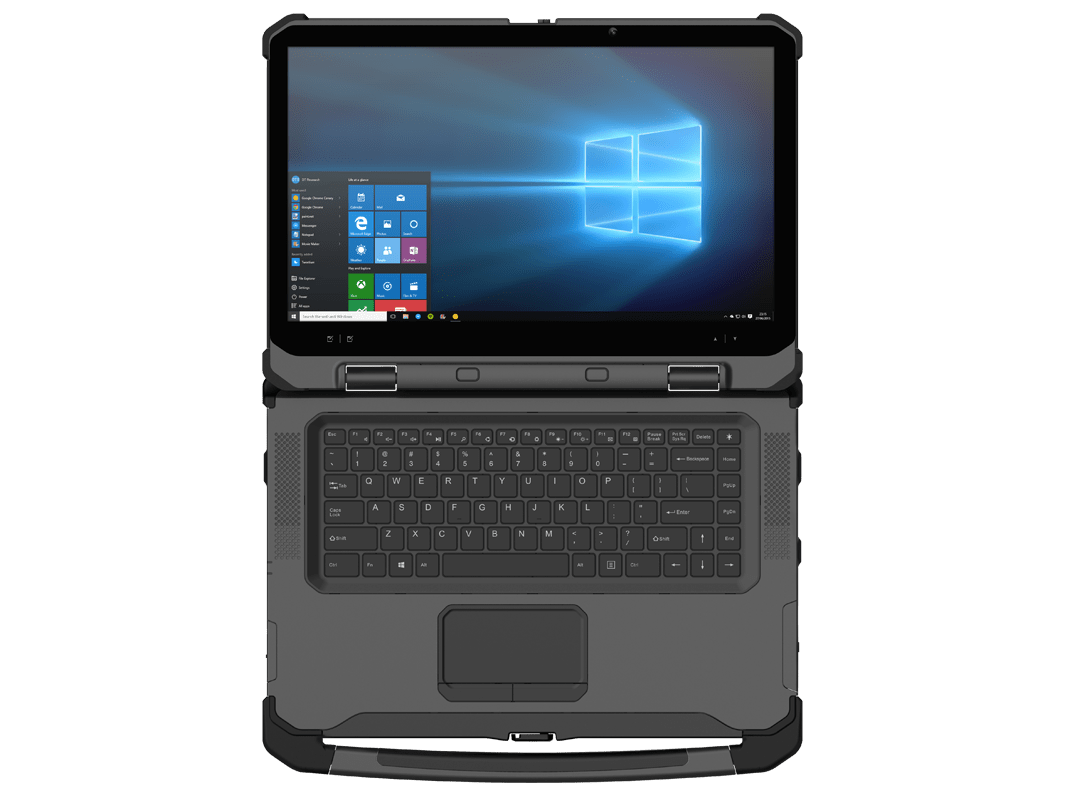

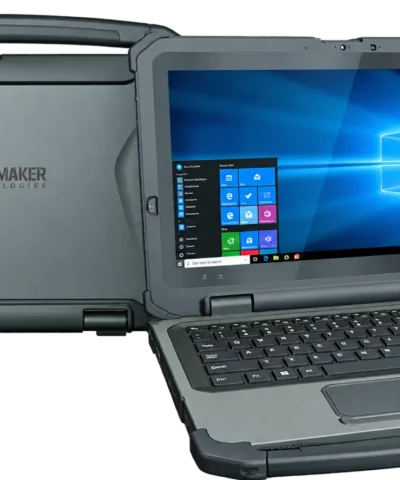

E320XL (15.6”) Rugged Laptop

The E320XL (15.6”) Rugged Laptop features the integration of a convertible 15.6” screen, an Intel® 10th Generation Core™ i processor, and a full-size keyboard. With a built-in smart card/CAC reader, the E320XL  provides advanced identity verification for secure data access. The night vision option supports viewing MIL-STD-3009 class B NVIS mode, offering another layer of security for light-sensitive situations. Rated IP65, MIL-STD-810G, and MIL-STD-461F, and supporting a wide temperature range, the E320XL Rugged Laptop provides reliable operation in harsh, mission-critical environments.


  • 15.6” high-brightness (1000 nits) capacitive screen, digital pen support

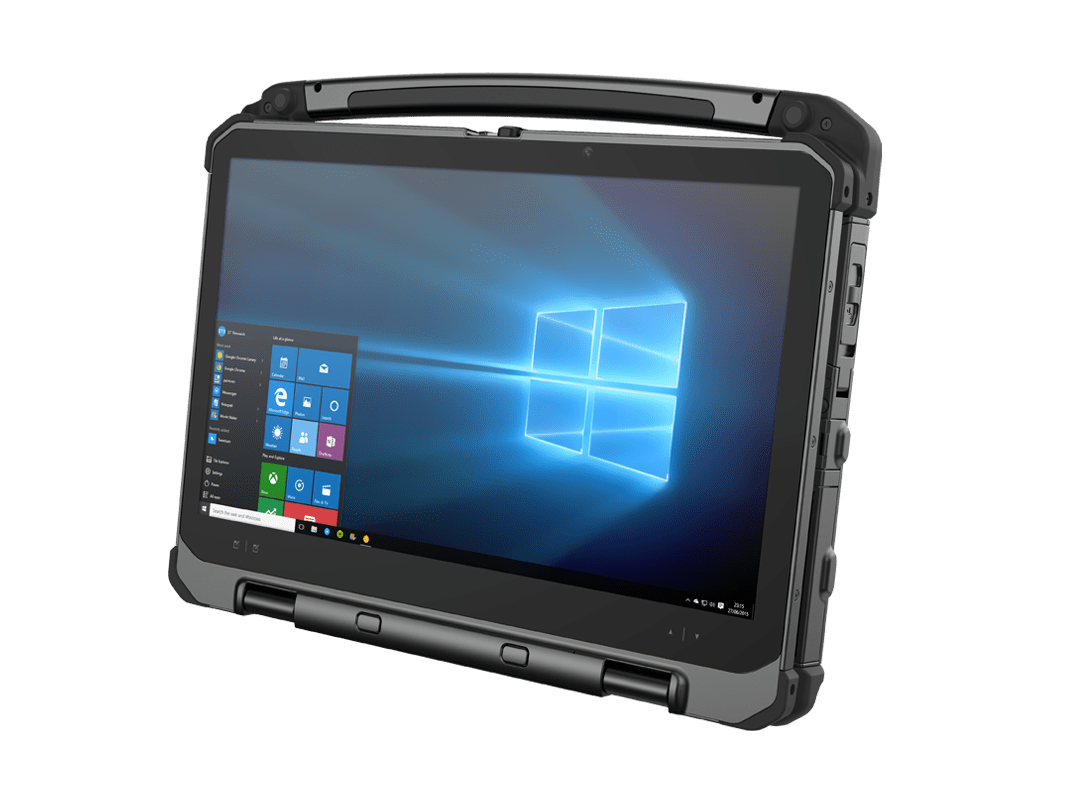

  • Convertible screen, transforms from laptop to tablet
  • Intel® 10th Generation Core™ i5/i7 processor
  • Microsoft® Windows® 10 IoT Enterprise operating system
  • Backlit keyboard with multi-touch pad
  • Fanless, robust design
  • Built-in smart card/CAC reader (full-slot)
  • Dual SSD slots, support RAID 0/RAID 1
  • Dual RAM slots, up to 64GB
  • Dual Hot-swappable batteries for 24/7 operation
  • Modular design to easily replace the SSD and batteries
  • Anti-microbial coating
  • IP65-rated for water and dust resistance
  • MIL-STD-810G for shock and vibration protection
  • MIL-STD-461F for EMI and EMC tolerance
  • HERO (Hazard of Electromagnetic Radiation to Ordnance) certified

Major Options

  • 4K (3840 x 2160) resolution screen
  • MIL-STD-3009 class B Night Vision screen
  • Front Full-HD camera
  • 4G LTE/AWS


CPU Intel® Core™ i5-10210U, Quad-Core, 1.6GHz (up to 4.2GHz)
Intel® Core™ i7-10710U, 6-Core, 1.1GHz (up to 4.7GHz)
RAM 8GB to 64GB (dual-slot)
Storage 256GB to 4TB SSD
(dual-slot, supports quick release and RAID 0/RAID 1)
Operating System Microsoft® Windows® 10 IoT Enterprise
Buttons 1 power button, 2 programmable buttons, 2 brightness control buttons, 1 NVIS/Normal toggle
Microphone Built-in microphone
Speaker Built-in speaker
Screen Size 15.6” screen with capacitive touch, 16.7M colors
Display Resolution 1920 x 1080, or 3840 x 2160 (optional)
Luminance Standard sunlight-readable screen: 1000 nits
Optional night-vision screen – daylight mode: 800 nits; NVIS mode: 0 to 20 nits. MIL-STD-3009 Class B compliant, providing clear readability of the display with naked eyes in dark environments and does not interfere with NVGs.
Optional night-vision screen – daylight mode: 800 nits; NVIS mode: 0 to 0.7 nits. MIL-STD-3009 Class B compliant, providing clear readability of the display with NVGs in dark environments.
Contrast Ratio 800 (typical)
Optical Response Time 25 msec (typical)
Keys QWERTY, full row of F1 to F12 function keys
Keys for Windows shortcuts, media controls, screen brightness
Backlight Yes
TouchPad Multi-touch
WLAN Wi-Fi 802.11ax, 2.4GHz/ 5GHz dual band
Bluetooth Bluetooth 5.1

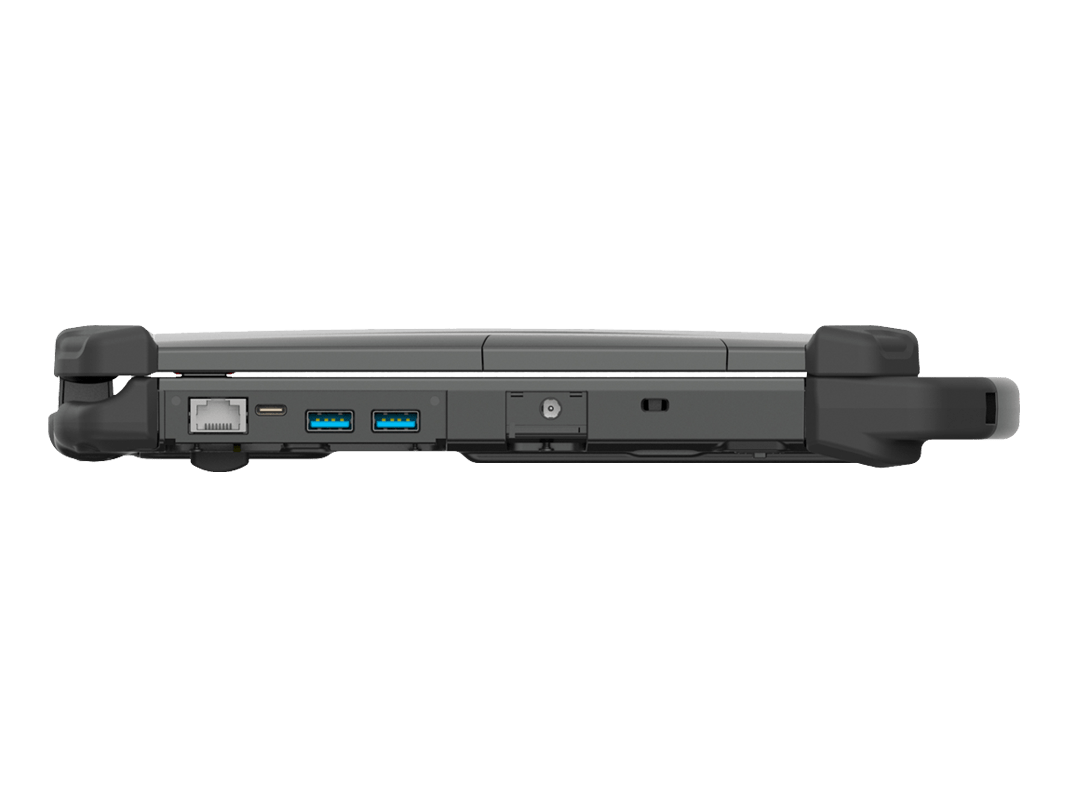

USB Port USB 3.0 x 2, USB Type-C x 1 (for data transmitting, video-out, and charging)
Ethernet Ethernet 10/ 100/ 1000MB Base-T LAN
HDMI-out 1
Audio Jack 1 (3.5mm)
DC-in 1
SD Card 1
Smart Card/CAC Reader Full-slot, reads ISO 7816 T=0, T=1; 1.8/3/5V smart card
Kensington Lock 1
AC/DC Adapter Input: 100-240V AC; Output: 19V DC, 3.42A
Battery Pack Hot-swappable battery, 11.4V, 5400mAh x 1
Hot-swappable battery, 11.4V, 8000mAh (optional) x 1
Enclosure< ABS + PC plastics and magnesium-aluminum alloy with anti-microbial coating
Dimensions (H x W x D) 1.5 x 13.6 x 9.7 in / 39.2 x 345 x 247 mm
Weight 8.95 lbs/ 4.06kg
Hazard of Electromagnetic Radiation to Ordnance (HERO) Testing Yes
Durability IP65, MIL-STD-810G/H, and MIL-STD-461F certified
Regulatory FCC Class B, CE, RoHS compliant
Temperature Operation: -10°C to 60°C (14°F to 140°F), optional -30°C to 60°C (-22°F to 140°F)
Storage: -55°C to 70°C (-67°F to 158°F)
Humidity 0% – 95% non-condensing
CAMERA Front Full-HD camera with auto white balance and gain/exposure control


Digital Pen

Dimensions: 9.7mm x 140.7mm; Weight: <25g. Battery: 1 AAAA.

Battery Gang Charger

Simultaneously charge 6 external batteries.

Battery Charger Kit with AC Adapter and Power cord

Recharges battery pack “offline” without affecting tablet use.

High Capacity Battery Pack

Hot swappable, 60W or 90W.

USB Type-C I/O Ports Station

Provides quick connection to multiple peripherals via the USB Type-C port.
