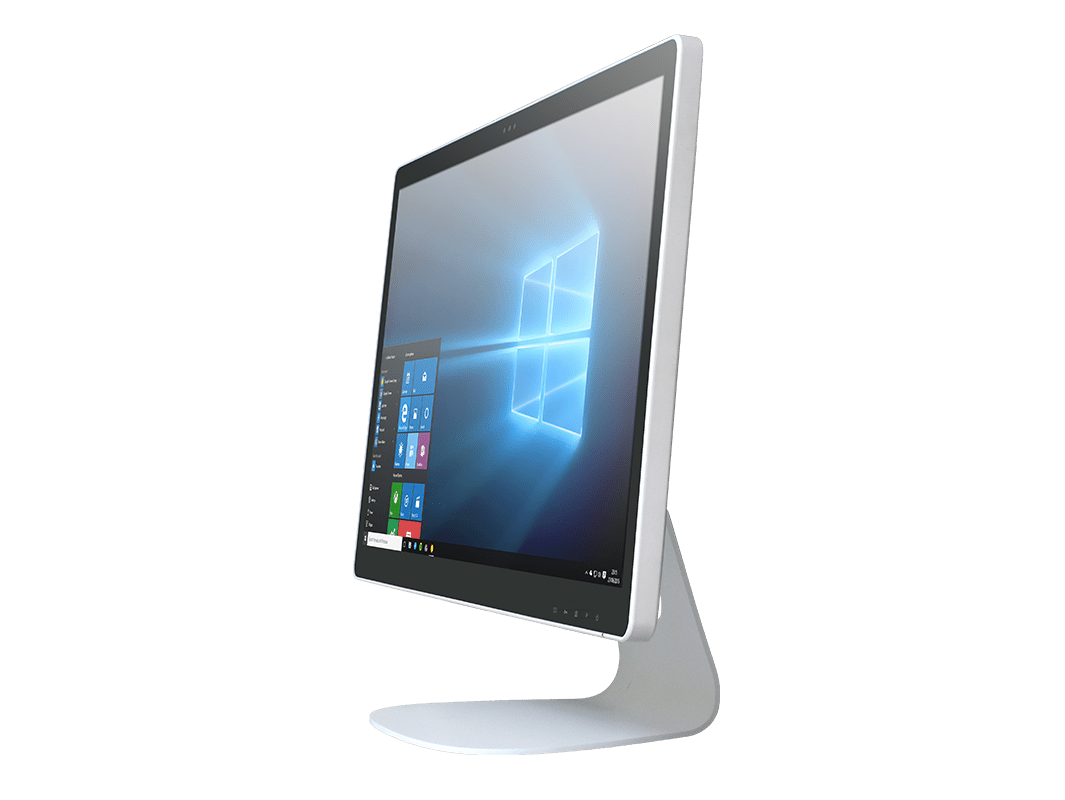

PM504T 24″/ PM504T-XL 27″

Antimicrobial All-in-One Computer Solution

The PM504T-XL Antimicrobial All-in-One Computer Solution integrates a 27-inch TFT-LCD with an energy efficient Intel® Core™ i platform in a fanless, slim, bacteria-resistant enclosure. Designed for medical and healthcare applications, this LCD-integrated system provides space-saving solutions for health professionals to monitor, record and retrieve patient information as well as other point-of-care applications. The built-in Wi-Fi and Bluetooth connections also make data access efficient and optimizes staff workflow.


  • 27” capacitive touch screen
  • Intel® 10th Generation Core™ iProcessor
  • Microsoft® Windows® 10 IoT Enterprise or Ubuntu operating system
  • Elegant all-in-one, slim, fanless design
  • Slim, all-in-one design with anti-microbial enclosure
  • IP65 rated front panel with IPX2 rated enclosure
  • VESA-mountable for flexibility in mounting and placement


CPU Intel® Core™ i9-10900T, 10-core, 1.9GHz (up to 4.6GHz)
RAM 8GB to 16GB
Storage 256GB to 512GB Flash
Operating System Microsoft® 10 IoT Enterprise or Ubuntu
Display 27″ capacitive touch screen
Display Resolution 1920 x 1080 (Full-HD), or 3840 x 2160 (optional)
Battery Pack Optional integrated UPS battery x 1
Bluetooth Bluetooth 4.1 LE
Network Interface Wi-Fi 802.11ac, 2.4GHz/ 5GHz dual band
Control Button 1 power and 4 programmable buttons
Speaker Built-in speaker & microphone

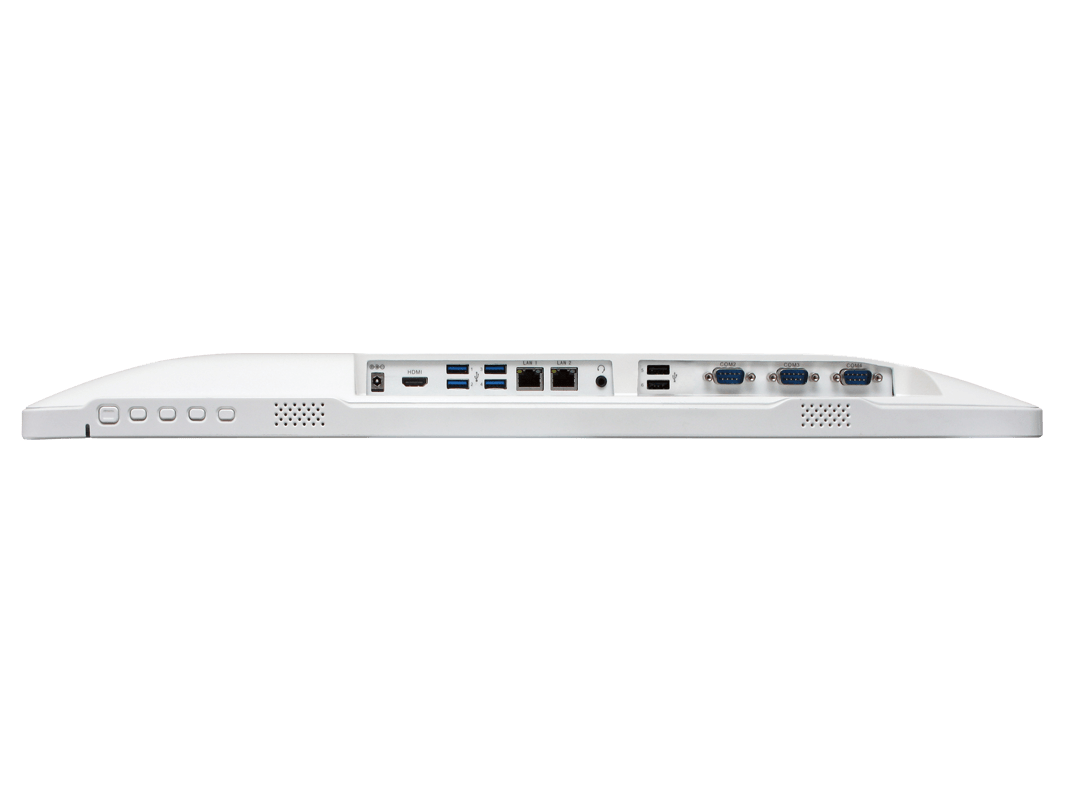

USB 2.0 2
USB 3.0 4
COM Port 3
Audio-out 1
HDMI-out 1
Ethernet RJ45 connector for Ethernet x 2
DC-in 1
Potential Equalization Conductor 1 (optional)
Fan/Fanless Fanless
AC/DC Adapter Input: 100-240V AC; Output: 19V DC, 6.31A
Enclosure Aluminum alloy, anti-microbial enclosure

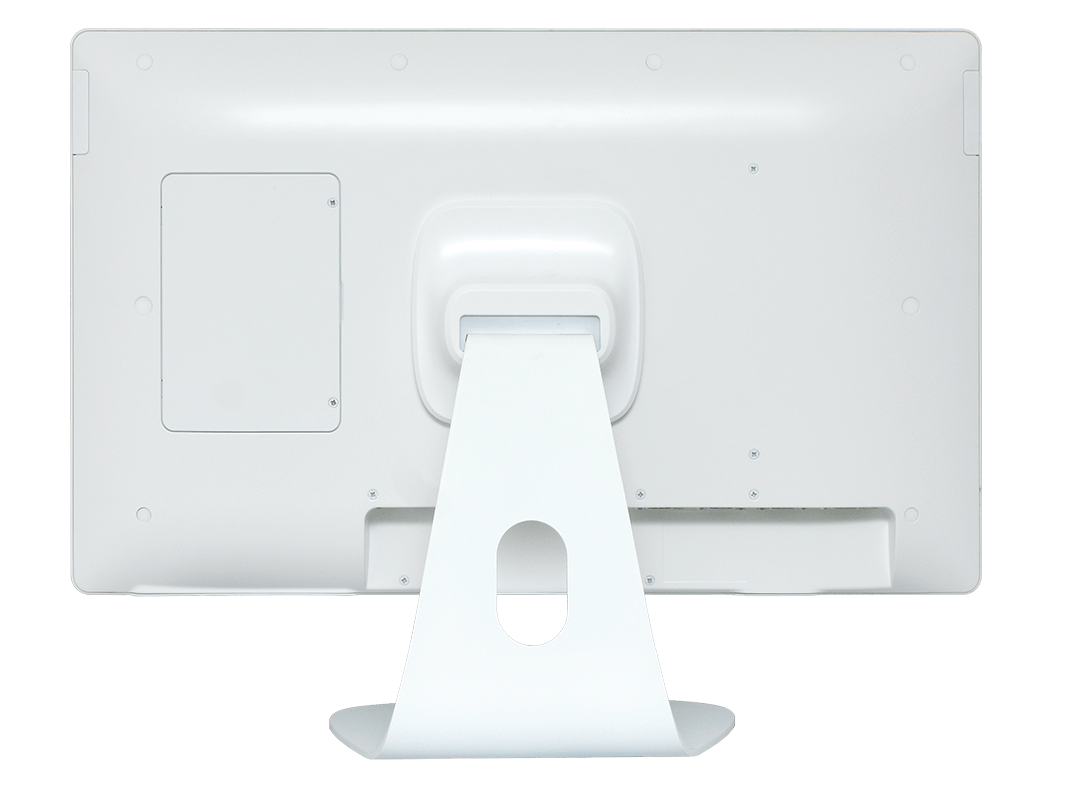

VESA-compliant Mounting 100mm × 100mm VESA standard

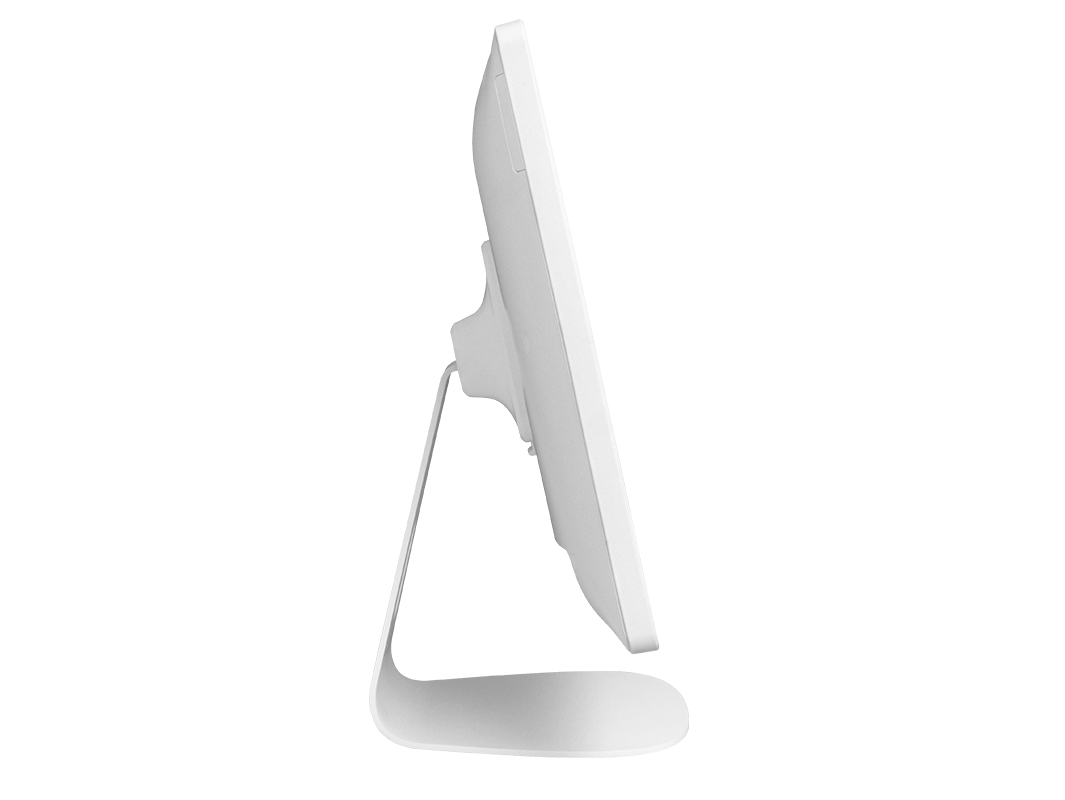

Dimensions (H x W x D) 16.2 x 25.2 x 1.8 in/ 411.8 x 639.1 x 45 mm
Weight 23.15 lbs/ 10.5 kg
Water Resistance Front panel: IP65
Enclosure: IPX2
Regulatory UL60601-1, FCC Part 18 Class B, CE, CCC compliant
Temperature Operation: 0°C to 40°C (32°F to 104°F);
Storage: -20°C to 60°C (-4°F to 140°F)
Humidity 0% – 90% non-condensing


Medical Grade AC Adapter with Power Cord PN: ACC-001-28

For 524 series; facilitates battery recharge and/or device operation. (Choice of North America, UK or EU power cord).

PM524T 24″
Hot-swappable Battery PN: ACC-006-590

DR202; 90W, 8250mAh battery.

6-Bay Gang Charger PN: ACC-001-596

6-Bay Gang Charger Kit is available for charging the DR202 batteries of 524 series. The Kit includes one battery cradle, an AC-DC adapter and a power cord.

Desktop Stand for 524 series

The LCD display can tilt up 30 degrees and down 3 degrees. Detachable aluminum construction. VESA-compliant mounting. Beige color.

3-Slot Battery Holster PN: ACC-001-36

Supplies powers to the system and peripherals (e.g., Zebra mobile printer and Welch Allyn vital sign monitor).

Battery Holster

Supplies powers to the peripherals (e.g., Zebra mobile printer and Welch Allyn vital sign monitor).
