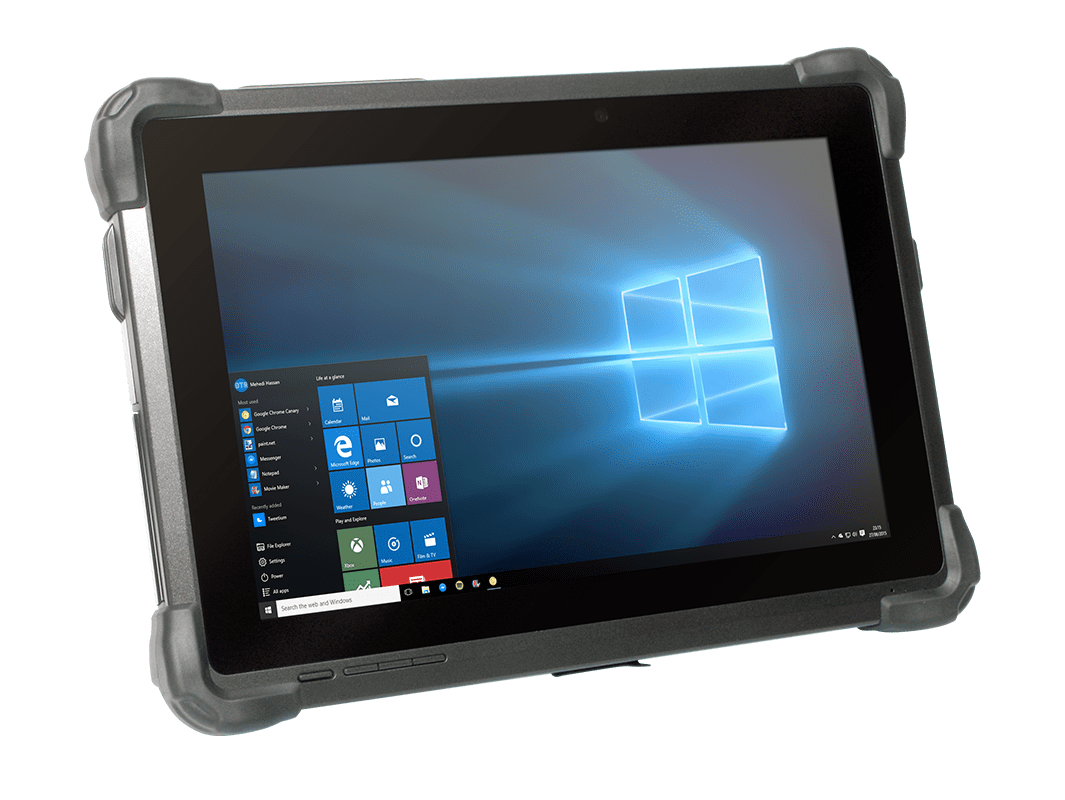

PD316 RUGGED TABLET 10.1″

Slim, Rugged, Multi-functional Wireless Computing

The PD316 Rugged Tablet features the integration of a 10.1″ touch screen and high performance yet energy-efficient Intel® processor within a slim, lightweight, durable package. With built-in smart card/CAC reader, Wi-Fi and Bluetooth as well as options for front camera, barcode scanner, GNSS and 4G connection, this robust tablet offers seamless information capture and transmission for improved workflow. Rated IP65 and MIL-STD-810G with wide temperature range, the PD316 Rugged Tablet provides reliable operation in harsh, mission-critical environments.

Features

  • 10.1″ Full-HD capacitive touch screen. Outdoor viewable
  • Intel® i5/i7 processor
  • Microsoft® operating system
  • NIST compliant BIOS available
  • High capacity, hot-swappable battery pack
  • Built-in smart card/CAC reader
  • IP65 rated, MIL-STD-810G and MIL-STD-461F certified



Major Options

  • Front and back cameras
  • 2D barcode scanner; reads 1D also
  • U-blox M8 GNSS module
  • 4G LTE/AWS

Specifications

CPUIntel® i5 or i7 quad-core processor
RAM8GB or 16GB
Storage256GB to 2TB flash
Operating SystemMicrosoft® 10 IoT Enterprise
NIST ComplianceNIST compliant BIOS available
Display10.1” LED-backlight, high-brightness (800 nits) screen with capacitive multi-touch, outdoor viewable
Display Resolution1920 x 1200
Network InterfaceWi-Fi 802.11ac, 2.4GHz/ 5GHz dual band; Bluetooth 4.2 LE
Fan/ FanlessFanless
Control Switch and Buttons1 power button, 3 programmable buttons, RF switch
Indicator1 power/ battery status LED
MicrophoneBuilt-in microphone with DSP for real-time video
SpeakersBuilt-in speaker
USB Port1 (USB 3.0)
Audio Jack1 (3.5mm)
DC-in1
Smart Card/CAC ReaderFull slot, reads ISO 7816 T=0, T=1; 1.8/3/5V smart card
BARCODE SCANNER2D barcode scanner; reads 1D also
CAMERA2 megapixel front camera and 8 megapixel back camera with auto focus, white balance, gain control and exposure control
GNSS MODULEU-blox M8 GNSS module with concurrent reception of GPS and GLONASS, industry leading -167dBm navigation sensitivity
MOBILE BROADBAND4G module for LTE, HSPA+, GSM/GPRS/EDGE, EV-DO, Rev A and 1xRTT

Accessories

Detachable Keyboard w
Detachable Keyboard

Designed to connect to a Peacemaker Tablet without switching and pairing, ideal for 2-in-1 applications.

btry
Battery Gang Charger

Simultaneously charge 6 external batteries.

pen
Digital Pen

Dimension: 9.7mm x 140.7mm; Weight: <25g. Battery: 1 AAAA.

PD316 RUGGED TABLET 10.1″
Desktop Charging Cradle

Docking support with ports for Power, USB, HDMI outputs and Ethernet.

PD316 RUGGED TABLET 10.1″
Tablet Mount Cradle

Offers Tablet storage and security with power, HDMI-out, COM, Ethernet pass-through, and USB ports. Power supply is not included.

btrrya
Battery Charger Kit with AC Adapter and Power cord

Recharges battery pack “offline” without affecting tablet use.

bay
5-Bay Cabinet Charger

5-Bay Cabinet Charger for PD316. Multi-bay charger, capable of charging up to five PD316 tablets simultaneously.

ac
AC/DC Power Adapter with Power Cord

Facilitates battery recharge or Tablet operation through direct connection to the Tablet or via the Power Jack in the Charging Cradle. (Choice of North America, UK or EU power cord).

pole
Pole Mount Cradle

Provides secure placement of the Rugged Tablet on VESA-compliant stands, brackets, and arms.

keyboard
Keyboard Mounting Kit for Vehicle/Wall Mount Cradle

Includes ACC-008-50T and PMT packaging. Designed to be attached with the Wall/Vehicle Mount Cradle. The Keyboard Mounting Kit can be folded up when not in use.

strap
Shoulder Strap for Tablets

Padded for comfort, provides convenient mobile operation, strap is adjustable and can be attached to the Rubber Grips.

auto
Automobile Power Adapter by LIND

Output voltage 65W/ 19V. Input: 11-16V DC.

case
Carrying Case

Open-to-use design with foldable tabletop stand. Made of 1680 denier nylon fiber with water-repellent coating.

high
High Capacity Battery Pack

Hot swappable, 60W or 90W.
