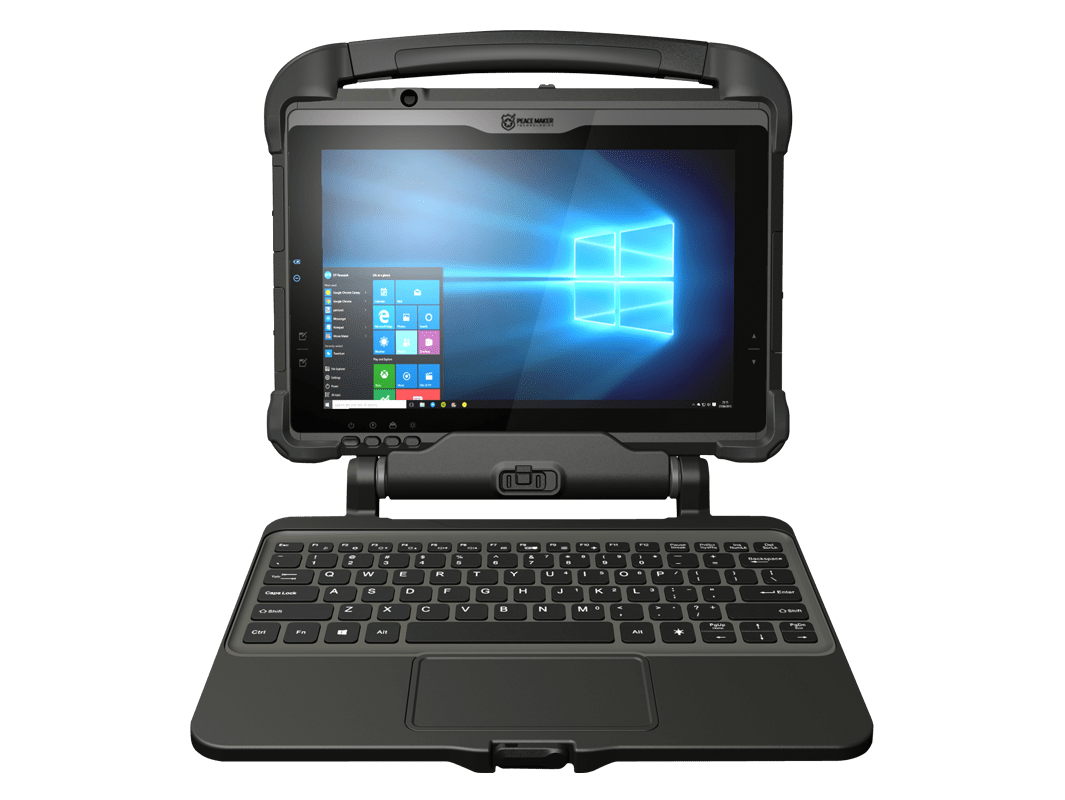

PM810 RUGGED 2-IN-1 TABLET 10.1”

Slim, Rugged, Multi-functional Wireless Computing

The PM810 Rugged Tablet features the integration of a high brightness 10.1” capacitive touch screen and a high performance, energy-efficient 8th generation Intel® Core™ i processor within a slim, lightweight, durable package. With a built-in smart card/CAC reader, Wi-Fi and Bluetooth, as well as options for front/ back cameras, barcode scanner, long range Bluetooth and GNSS, this rugged tablet offers seamless information capture and transmission for improved workflow. Rated IP65, MIL-STD-810G and HERO certified with wide temperature range, the PM810 Rugged Tablet provides reliable operation in harsh, mission-critical environments.

Features

  • 10.1″ Full-HD capacitive touch screen, 1000 nits, digital pen support
  • Intel® i5/i7 processor
  • Microsoft® 10 IoT Enterprise operating system
  • NIST compliant BIOS available
  • High capacity, hot-swappable battery pack
  • Built-in smart card/CAC reader
  • IP65 rated, MIL-STD-810G and MIL-STD-461F certified
  • HERO (Hazard of Electromagnetic Radiation to Ordnance) certified
  • Detachable keyboard option for 2-in-1 applications



Major Options

  • Front and back cameras
  • Intel® RealSense™ back camera
  • 2D barcode scanner; reads 1D also
  • UHF RFID reader
  • Long range Bluetooth
  • U-blox M8 GNSS module
  • 4G LTE/AWS

Specifications

CPU Intel® Core™ i5-8250U, Quad-Core, 1.6GHz (up to 3.4GHz)
Intel® Core™ i7-8550U, Quad-Core, 1.8GHz (up to 4.0GHz)
RAM 8GB to 32GB
Storage 256GB to 2TB flash
Operating System Microsoft® 10 IoT Enterprise
NIST Compliance NIST compliant BIOS available
Display 10.1” LED-backlight, high-brightness (1000 nits) screen with capacitive touch, outdoor viewable
Display Resolution 1920 x 1200
Network Interface Wi-Fi 802.11ac, 2.4GHz/ 5GHz dual band; Bluetooth 4.2 LE
Control Switch and Buttons 1 power button, 2 brightness control buttons, 5 programmable buttons
Speaker Built-in speaker
USB Port USB 3.0 x 1, USB Type C x 1 (data transmitting and charging)
Headset Jack 1 (3.5mm)
Smart Card/CAC Reader Full-slot, reads ISO 7816 T=0, T=1; 1.8/3/5V smart card
Ethernet Ethernet 10/ 100/ 1000MB Base-T LAN
AC/DC Adapter Input: 100 – 240V AC; Output: 20V DC, 3.25A
Battery Pack Hot swappable battery, 11.4V, 5400mAh
Hot swappable battery, 11.4V, 8000mAh (optional)
Enclosure ABS + PC plastics and magnesium-aluminum alloy
Dimensions (H x W x D) 7.8 x 11 x 0.86 in/ 198 x 280 x 21.9 mm
Weight 3.1 lbs/ 1.4 kg
Durability IP65, MIL-STD-810G and MIL-STD-461F certified
Hazard of Electromagnetic Radiation to Ordnance (HERO) Testing Yes
Regulatory FCC Class B, CE, RoHS compliant
Temperature Operation: -10°C to 60°C (-14°F to 140°F), optional -30°C to 60°C (-22°F to 140°F)
Storage: -55°C to 70°C (-67°F to 158°F)
Humidity 0% – 90% non-condensing
BARCODE SCANNER 2D barcode scanner; reads 1D also
CAMERA 2 megapixel front camera, and 8 megapixel back camera with auto focus, white balance, gain control, and exposure control; or, Intel® RealSense™ Depth back camera, supports distance capture for 3D scanning, environment sensing, and background segmentation applications
UHF RFID READER 865MHz – 928MHz, EPCglobal Class 1 Gen 2/ ISO 18000-6C. 16 feet (4.87m) in read distance
LONG RANGE BLUETOOTH Class 1 Bluetooth (1000 ft)
GNSS MODULE U-blox M8 GNSS module with concurrent reception of GPS and GLONASS, industry leading -167dBm navigation sensitivity
MOBILE BROADBAND 4G LTE/AWS

Accessories

docking
Docking Keyboard

With ports for Power, COM, LAN, HDMI output and USB; designed to connect to the PM810 rugged tablets, instantly pairs, ideal for 2-in-1 applications.

btry
Battery Gang Charger

Simultaneously charge 6 external batteries.

pen
Digital Pen

Dimension: 9.7mm x 140.7mm; Weight: <25g. Battery: 1 AAAA.

PD316 RUGGED TABLET 10.1″
Desktop Charging Cradle

Docking support with ports for Power, USB, HDMI outputs and Ethernet.

PD316 RUGGED TABLET 10.1″
Tablet Mount Cradle

Offers Tablet storage and security with power, HDMI-out, COM, Ethernet pass-through, and USB ports. Power supply is not included.

btrrya
Battery Charger Kit with AC Adapter and Power cord

Recharges battery pack “offline” without affecting tablet use.

acdc
AC/DC Power Adapter with Power Cord

Facilitates Tablet operation or battery recharge. USB Type-C connector.

pole
Pole Mount Cradle

Provides secure placement of the Rugged Tablet on VESA-compliant stands, brackets, and arms.

keyboard
Keyboard Mounting Kit for Vehicle/Wall Mount Cradle

Includes ACC-008-50T and PMT packaging. Designed to be attached with the Wall/Vehicle Mount Cradle. The Keyboard Mounting Kit can be folded up when not in use.

strap
Shoulder Strap for Tablets

Padded for comfort, provides convenient mobile operation, strap is adjustable and can be attached to the Rubber Grips.

auto
Automobile Power Adapter by LIND

Output voltage 65W/ 19V. Input: 11-16V DC.

case
Carrying Case

Open-to-use design with foldable tabletop stand. Made of 1680 denier nylon fiber with water-repellent coating.

high
High Capacity Battery Pack

Hot swappable, 60W or 90W.
